234s
FEATURES:

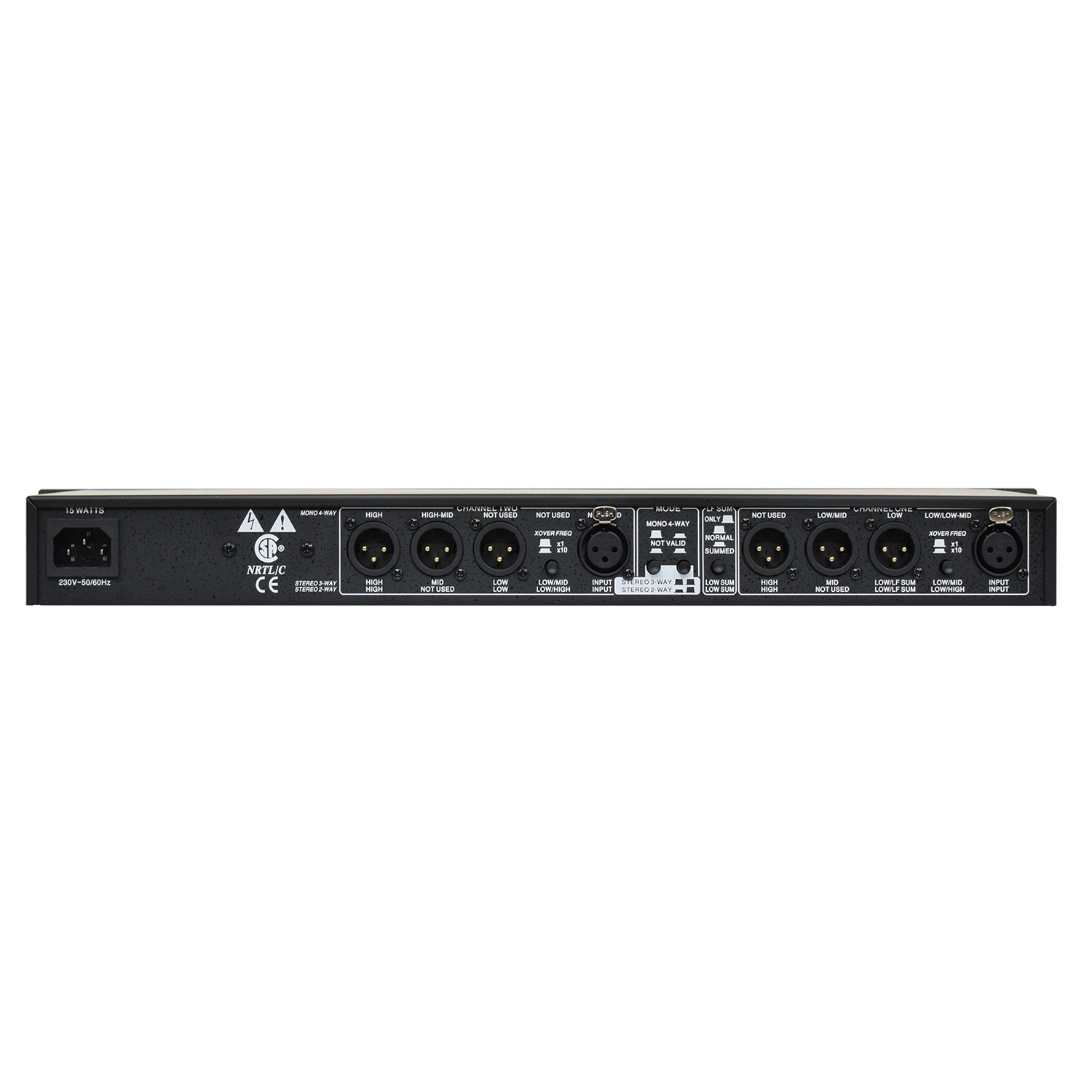

- XLR balanced ins & outs
- Mode switches for 4-way mono or 2/3 way stereo
- Low frequency summed (subwoofer) output
- x10 range switch on both channels
- 40Hz high-pass (low-cut) filter for both channels
- Phase reverse switch on all outputs
- Individual level controls on all outputs
- 24dB/octave filters
- Internal power supply transformer
Specifications
| Input Type | Electronically balance/unbalanced, RF filtered |
| Input Impedance | Balance 50KΩ, Unbalanced 25KΩ |
| Output Impedance | Balance 60 ohm, Unbalanced 30 ohm |
| Bandwidth | 20Hz - 20KHz |
| Frequency Response | 3Hz to 80KHz |
| S/N ratio | ≥94dB (low),≥93dB (mid), ≥90dB (High) output |
| THD | ≤0.004% |
| Interchannel Crosstalk | ≤81dB |
| Low cut Switch | 40Hz 12dB/octave Bessel high-pass filter, one switch per channel |
| Phase Invert Switch | Inverts the phase at the output, one switch per output |
| Mode Switch | Selects stereo/mono2/3/4-way operation |
| Dynamic Range | ≥108dB |
| Operating Voltage | 220V 50-60Hz |
| Dimension (HxWxD) | 4.4(H) x 48(W) x 17.5(D)cm |
| Net Weight | 1.8Kg |
