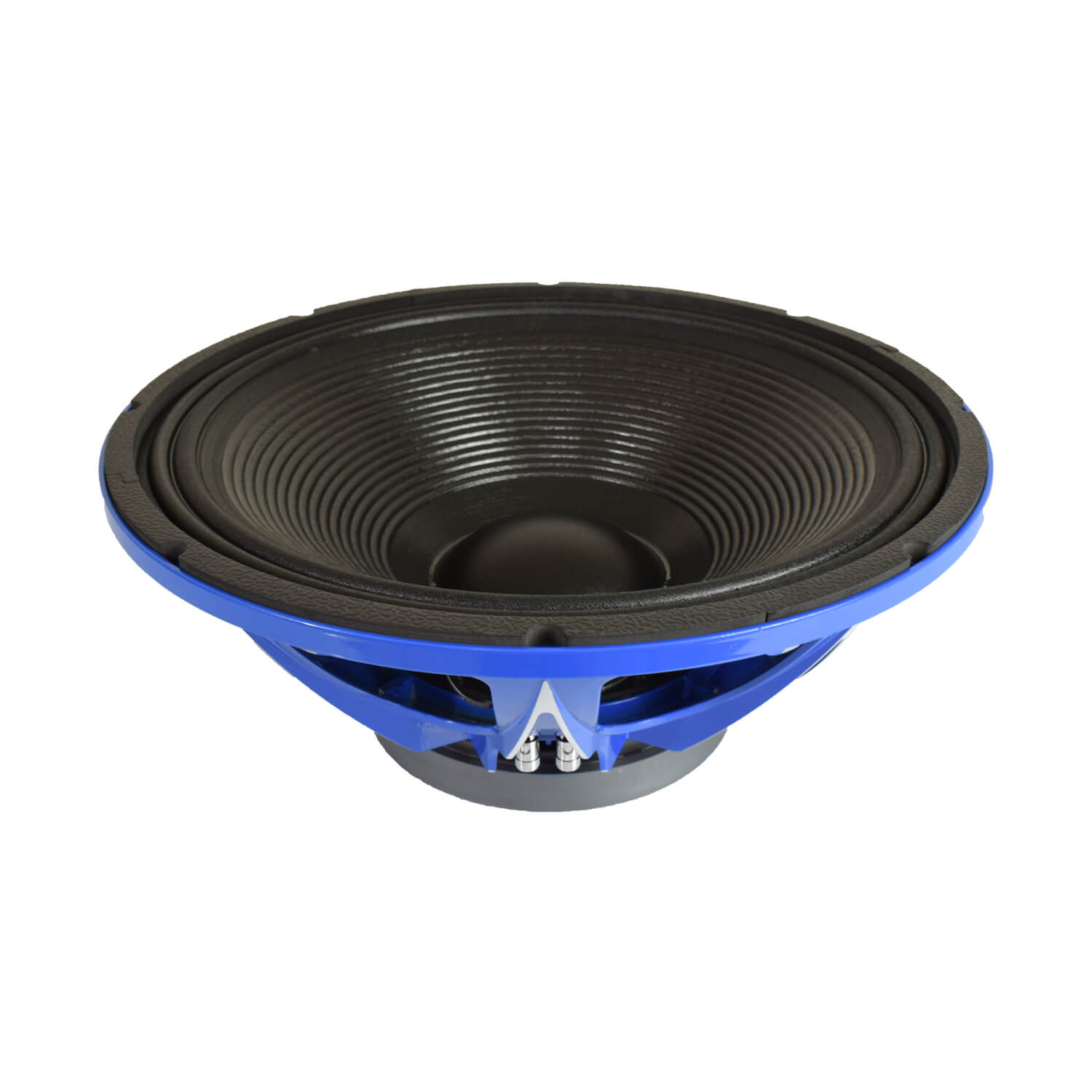

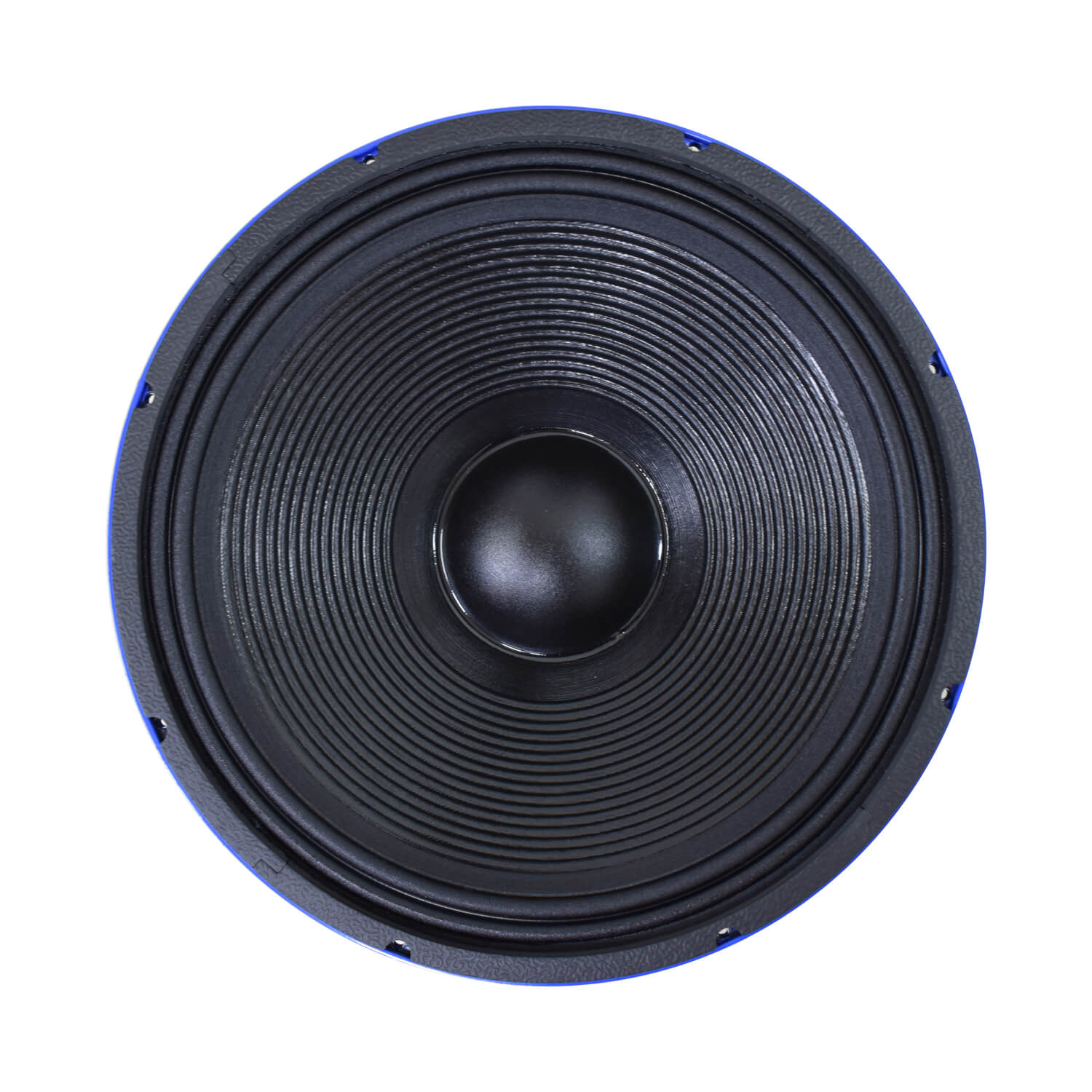

ATC-18BL
FEATURES:
- Nominal Diameter 18”
- Power 1300W
- 8 Ohms
- 4” Vcoil
- Freq Resp. 32Hz – 3.5KHz
- 103dB
Specifications
| Nominal Diameter | 18” |
| Nominal Impedance | 8Ω |
| Power Handling | 1400W |
| Program Power | 2800W |
| Sensitivity | 105dB |
| Frequency range | 35Hz-1.5KHz |
| Voice coil diameter | (4”)100mm |
| Basket material | Aluminum |
| Magnet material | Ferrite |
| Magnet Size | 220 x 25mm |
| Coil material | copper |
| Former material | Glass Fiber |
| Winding Height | 23mm |
| Cone material | Paper |
| Surround material | Fabric |
| Net weight | 12.7Kg |
| Gross weight | 14.3Kg |
| Unit Dimension (Ø x Depth) | 466mm x 225 mm |
