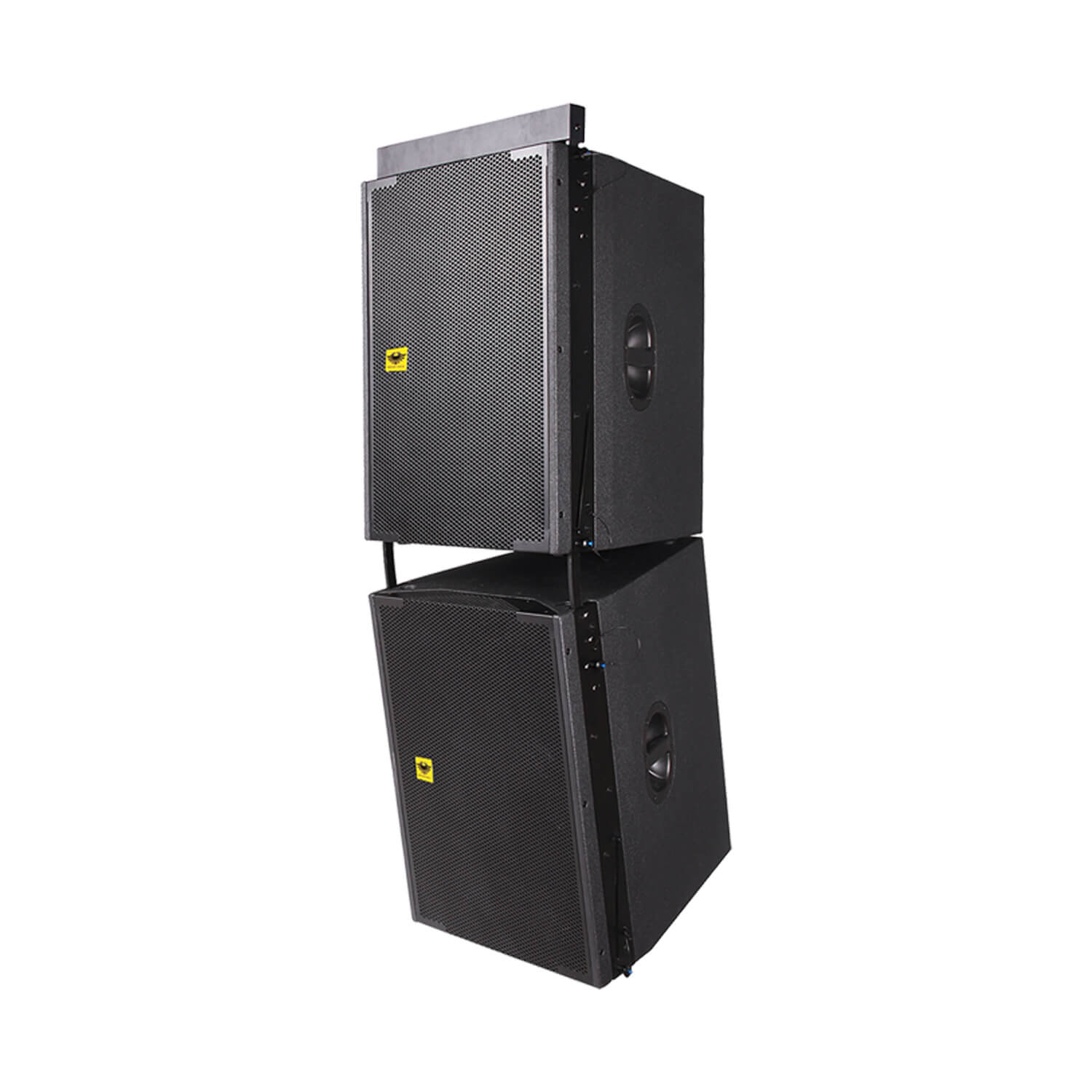

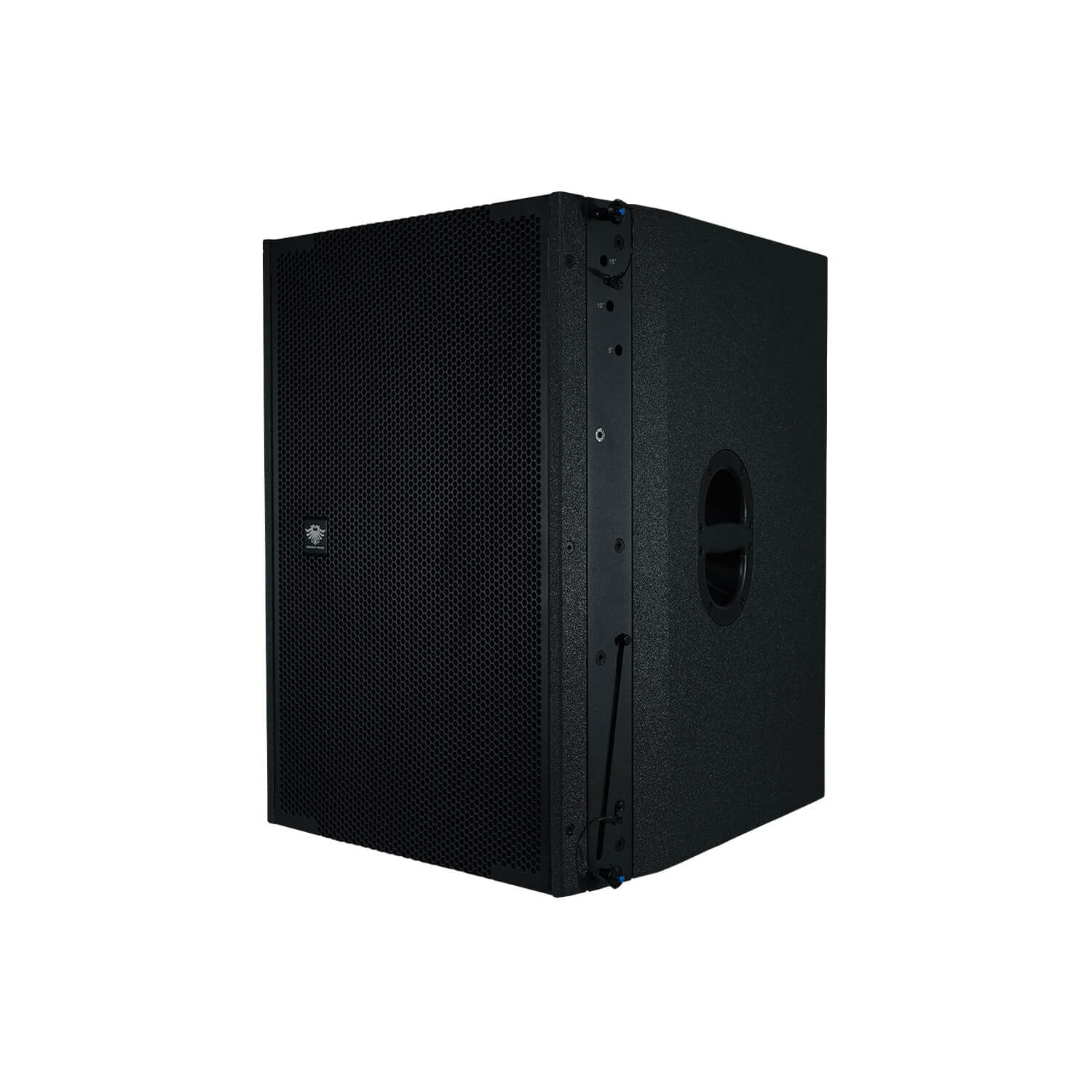

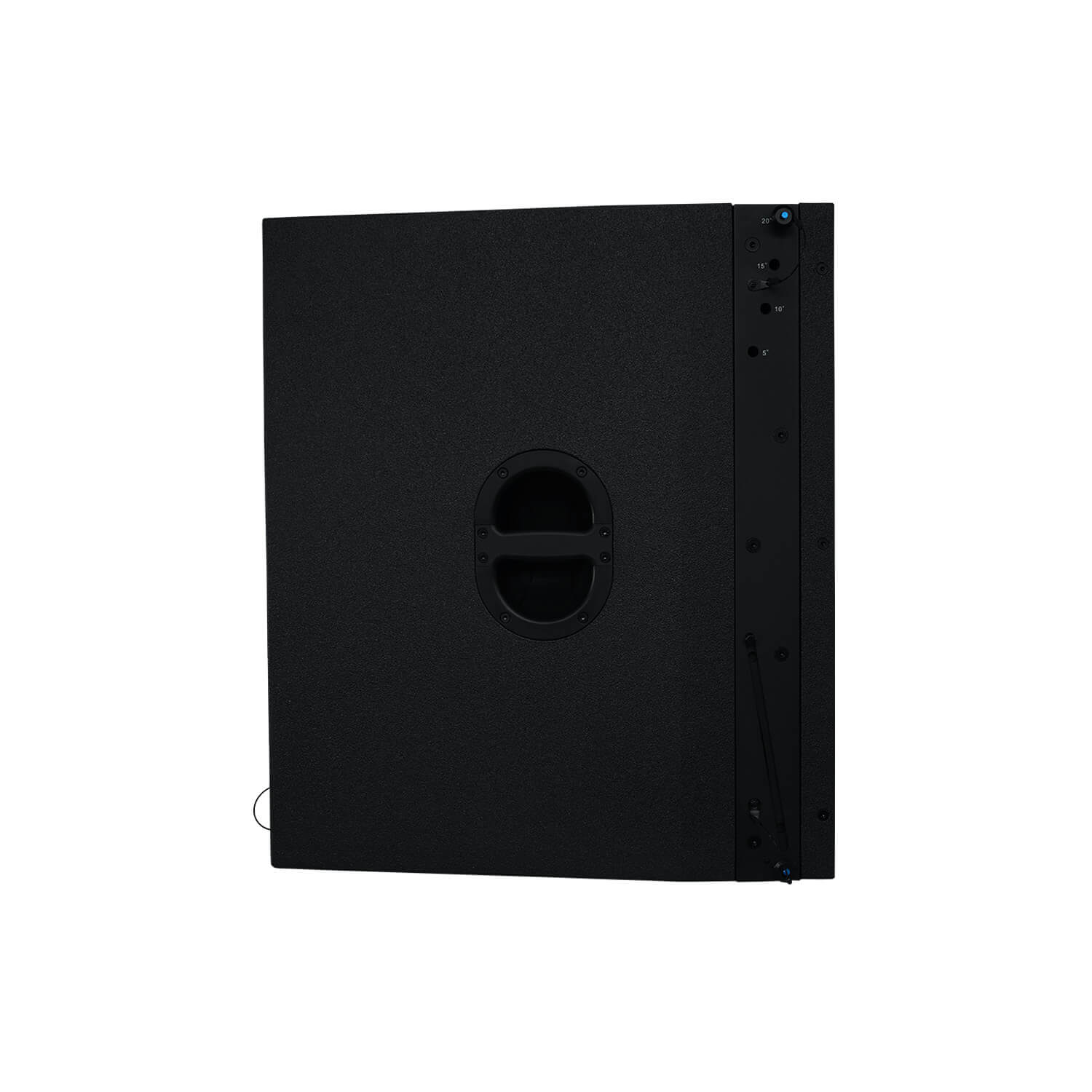

HLT-12X
FEATURES:
- 12” 3-way active speaker system
- 4 Neodymium HF driver
- High Quality Plywood with waterproof polyurea paint

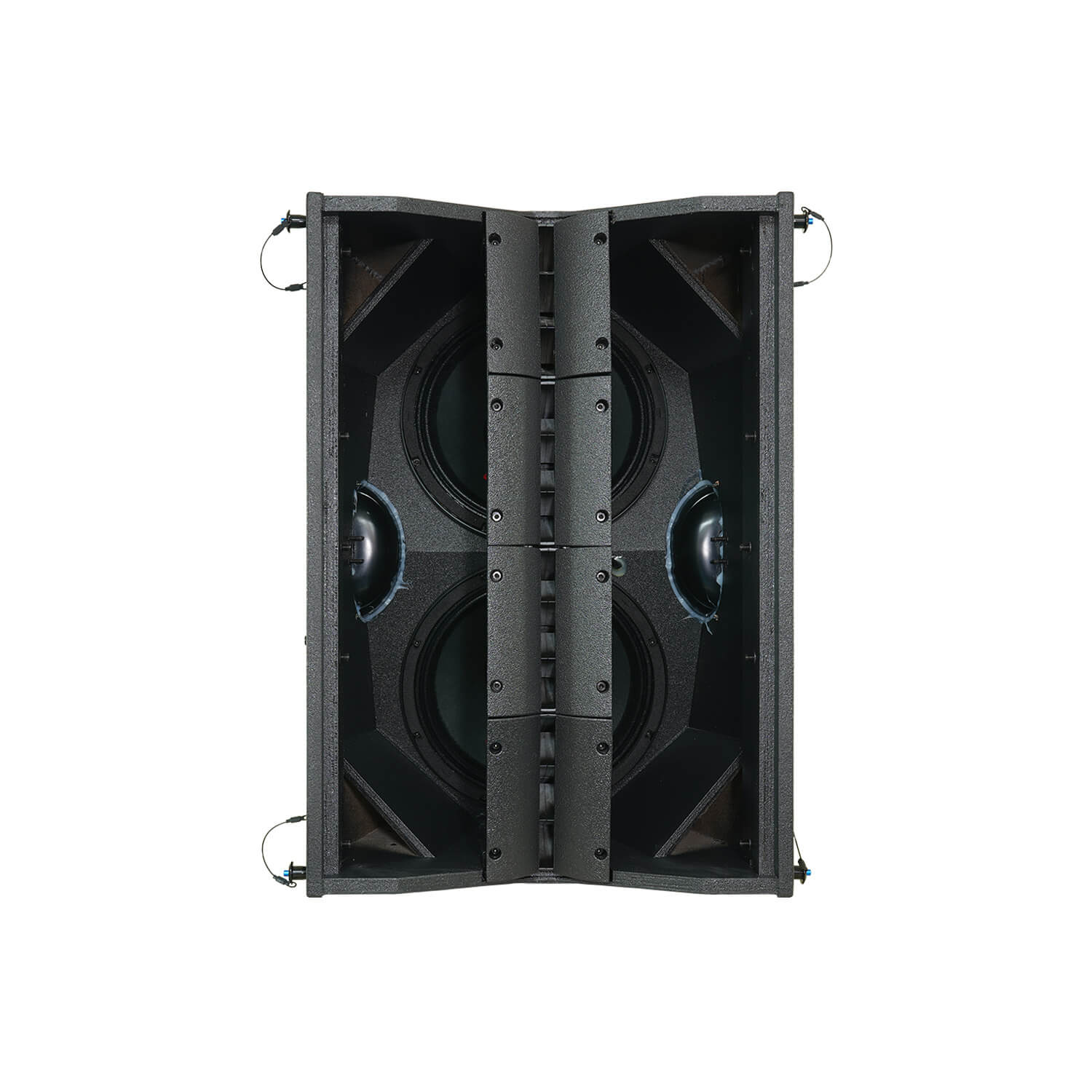

- Innovative hybrid horn, bass reflex, coaxial enclosure designed
- Allows applications on a tripod or flown vertical array
- Extreme sound pressure level
Specifications
| System Type | 2 Way Bass Reflex |
| LF | 12” x 2 Woofer (3” Voice coil size) |
| HF | 1.7”x 4 polyester Dome Tweeter |
| Frequency Response | 60Hz - 20KHz |
| Maximum Calculated | 131dB / 137dB |
| Configuration | High performance 3-way passive line array loudspeaker |
| Normal Impedance | 8Ω |
| Angle Adjustment | 0°, 1°, 2°, 4°, 6°, 8°, 10° |
| Amp. Power | 600W +1200W Class D Bi-amp with DSP |
| SPL | 104dB SPL @ 1m |
| Coverage | 90°(H) x 30°(V) |

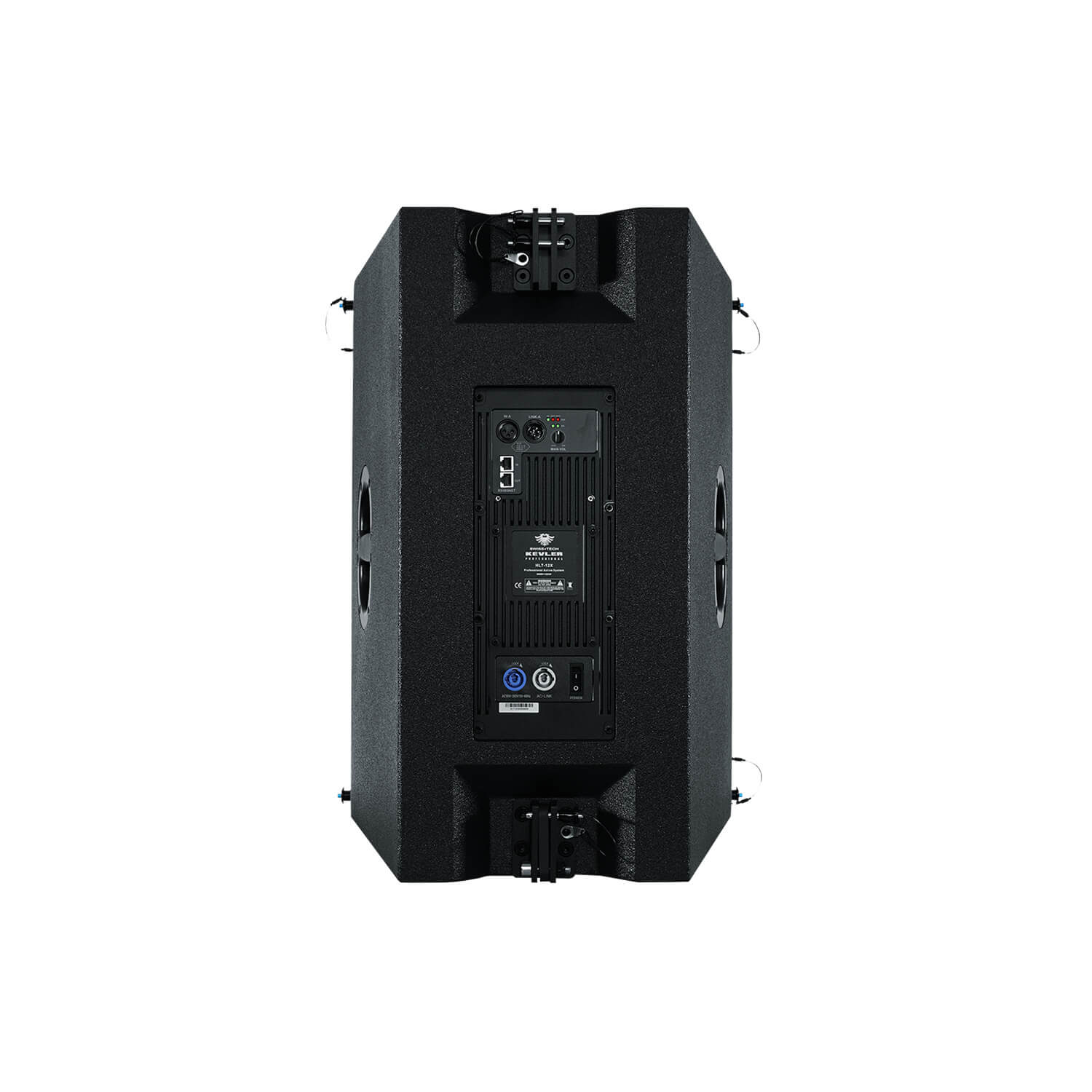

| Input Connector | Line (XLR Female jack) |
| Output Connector | Line (XLR Male loop through) |
| THD | Less than 0.5% |
| LED indicator | Power, Signal, Clip |
| Crossover Freq. | 1.8KHz |
| AC Input | 220V 50-60Hz |
| Dimension (HxWxD) | 681(H) x 480(W) x 580(D)mm |
| Net Weight | 47 KG |
| Gross Weight | 70 KG |
| Packaging | 910(H) x 590(W) x 630(D)mm |
