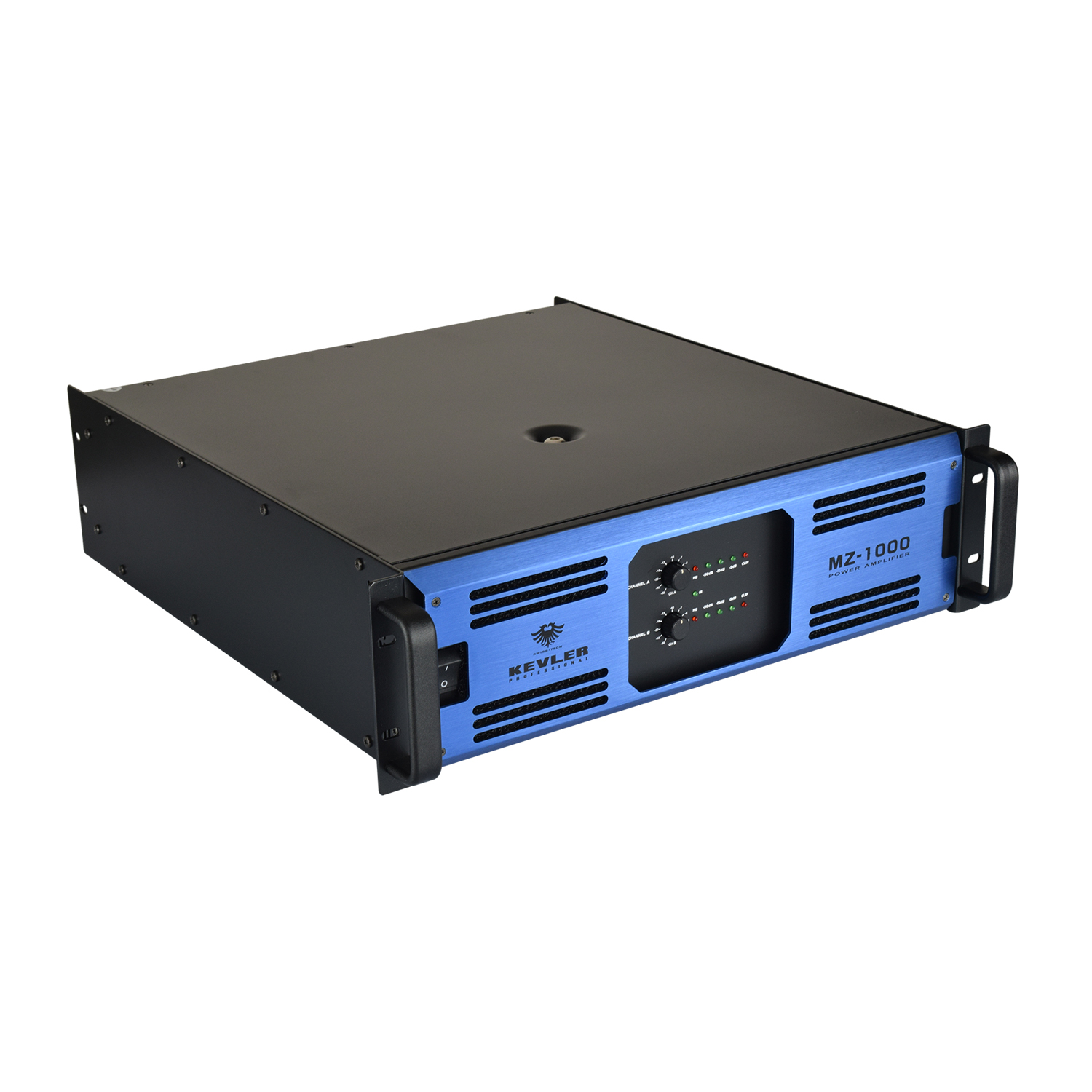

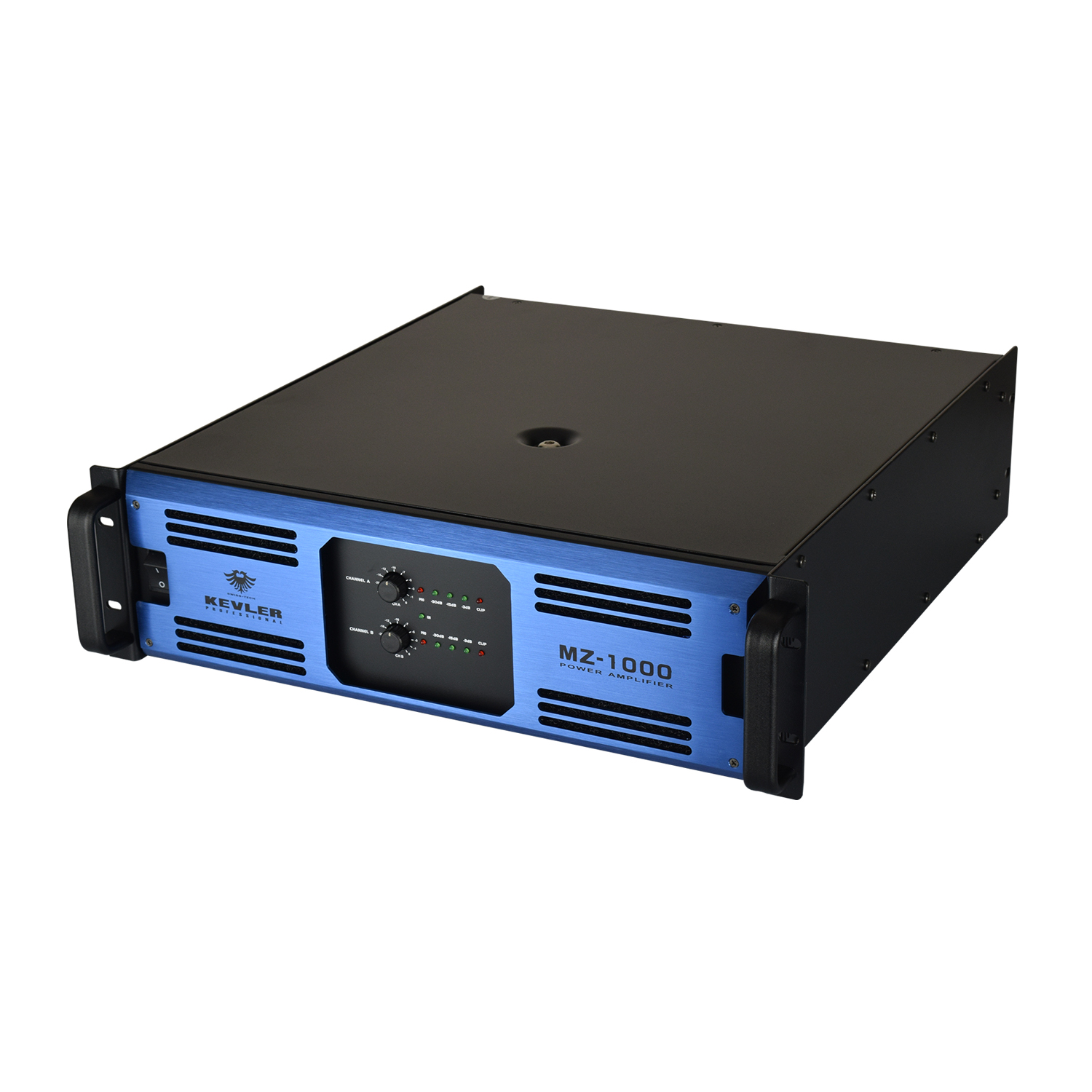

MZ-1000
FEATURES:
- High-current toroidal transformer
- Independent level control per channel
- Dual variable speed fans
- Selectable input sensitivity
- Stereo, Mono, Bridge mode selection
- Balance XLR input & output (thru)
- Speakon and binding post speaker output
- Robust, All-steel 2U rackmount chasis
- Pass / Lowpass filter selection
Specifications
| Stereo Power @ 8Ω | 2 x 1000W |
| Stereo Power @ 4Ω | 2 x 1500W |
| Stereo Power @ 2Ω | 2 x 2000W |
| Bridge Mono Power @ 8Ω | 3000W |
| Bridge Mono Power @ 4Ω | 4000W |
| Signal To Noise Ratio | 106 dB |
| Slew Rate | 80v/µs |
| Damping Factor | 600:1 |
| Frequency Response | ±0.1 dB, 20Hz-20KHz |
| Total Harmonic Distortion | ≤0.06% Rated Power @ 8 Ω 1 KHz |

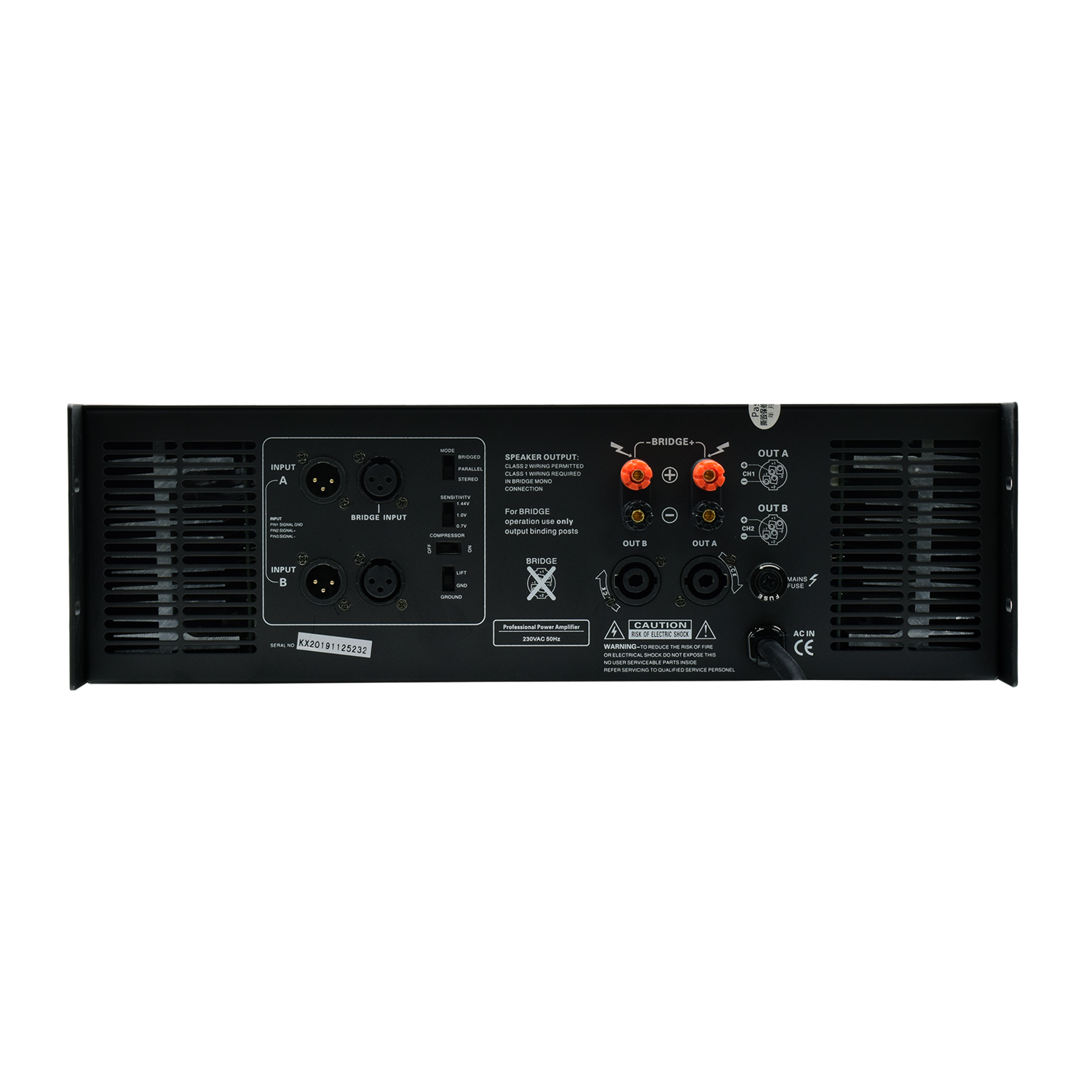

| Input / Output Connector | Female XLR Balanced / Male XLR Balanced (thru), speakon & Binding Post |
| Input Sensitivity | 0..775V, 1.0V, 1.5V |
| Input Impedance | 20KΩ Balance or 10KΩ Unbalanced |
| LED Indicators | Power, Protect, Signal Clip |
| Class | H |
| Power Supply & Fuse | 220V / 60Hz T25A |
| Net Weight | 31.5 kg |
| Unit Dimension (mm) | 483 (W) x 520 (D) x 143 (H) |
