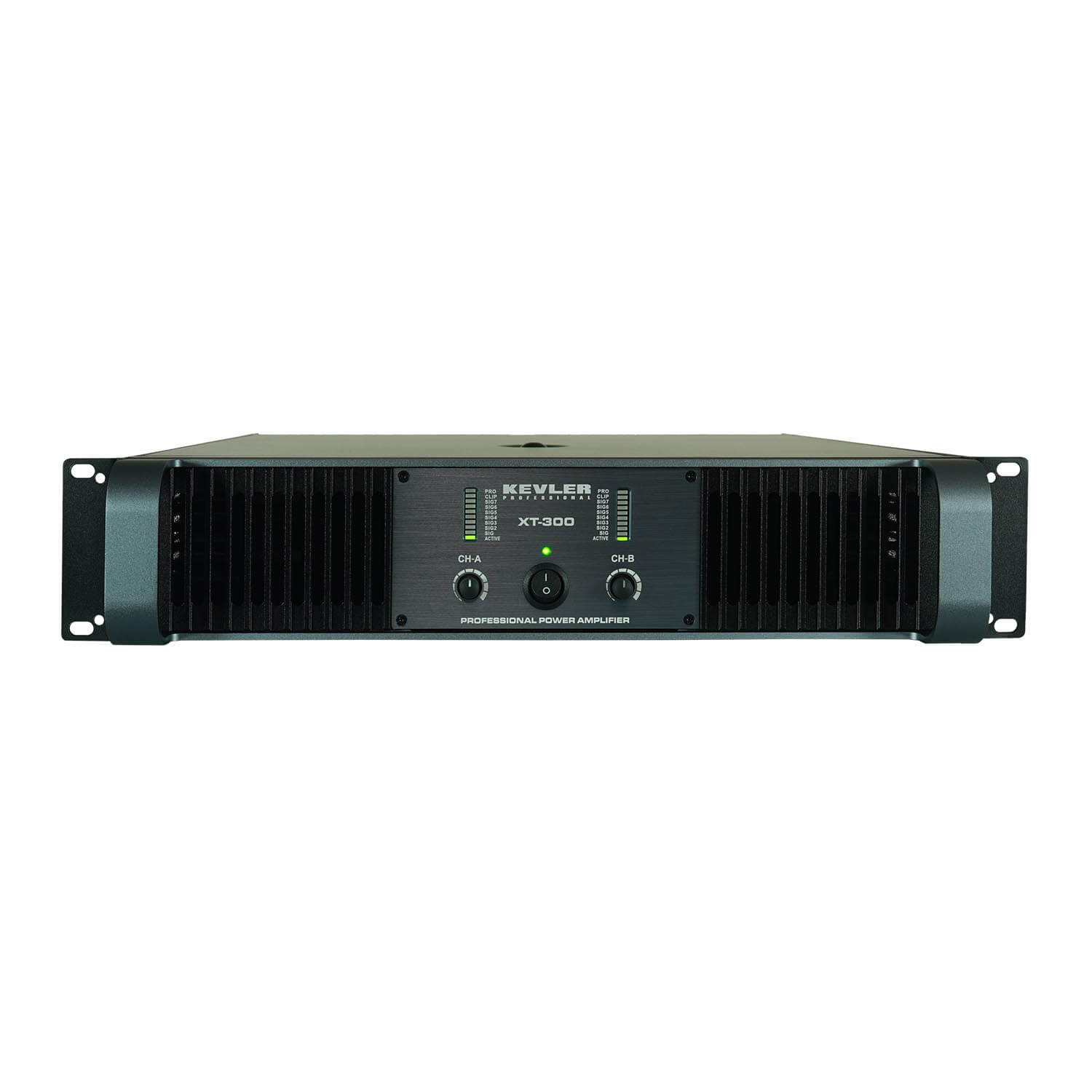

XT-300
FEATURES:
- High-current Pure Copper Toroidal Transformer, 2Q Stable
- Fiber Glass Circuit Board Material
- Front Mounted Gain Control for Easy Access
- Selectable Input Sensivity
- Stereo, Parallel Bridge Mode Selection
- Advance Thermal, Short Circuit & DC Protection
- Balanced XL R Input and Link Output
- Speakon & Binding Post Speaker Output
- Highpass and Lowpass Filter Selection
- Large Variable Speed Fans
- Strong Built Metal Chassis
Specifications
| Stereo Power @ 8Ω | 2 x 300W |
| Stereo Power @ 4Ω | 2 x 500W |
| Stereo Power @ 2Ω | 2 x 700W |
| Bridge Mono Power @ 8Ω | 800W |
| Bridge Mono Power @ 4Ω | 1000W |
| Signal To Noise Ratio | 110 dB |
| Slew Rate | 20v/µs |
| Damping Factor | >500 |
| Frequency Response | 20Hz-20KHz |
| Total Harmonic Distortion | ≤0.05% |
| Input Sensitivity | 0.775V, 1.0V, 1.44V |
| Input Impedance | 20KΩ Balance or 10KΩ Unbalanced |
| LED Indicators | Active, Signal, Clip, Protect |
| Class | H |
| Power Supply & Fuse | 220V / 60Hz |
| Unit Dimension (LxWxH) | 48.5 (L) x 50.5 (W) x 9.5 (H) cm / PC |
| Carton Size (LxWxH) | 58 (L) x 61 (W) x 18 (H) cm / PC |
| Gross Weight | 17 kg / PC |
| Net Weight | 15 kg / PC |
